Model: CPR, CPRS

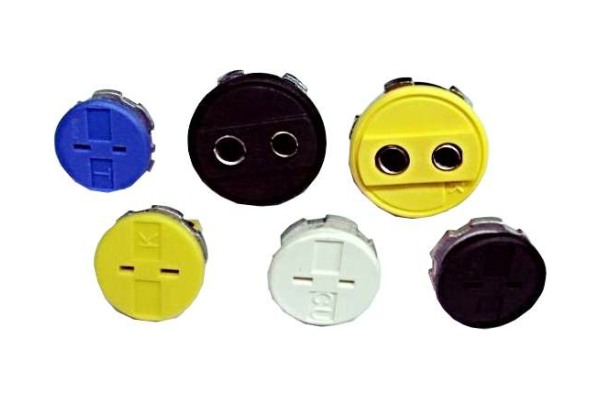

Round Panel Mount Thermocouple Connector

STANDARD MODEL ORDERING CODE
Model: CPR Round Panel Mount Thermocouple Connector - Miniature Size
Order Code	Type	ANSI Colour	Alloy		Panel Cutout Size (mm)	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Panel Cutout Size (mm)	Temperature Range (°C)
CPR002-K	K	Yellow	Chromel	Alumel	ø16	-29 ~ 220
CPR002-J	J	Black	Iron	Constantan	ø16	-29 ~ 220
CPR002-T	T	Blue	Copper	Constantan	ø16	-29 ~ 220
CPR002-E	E	Purple	Chromel	Constantan	ø16	-29 ~ 220
CPR002-N	N	Orange	Nicrosil	Nisil	ø16	-29 ~ 220
CPR002-RS	R/S	Green	Copper	RNX/SNX	ø16	-29 ~ 220
CPR002-U	U	White	Copper	Copper	ø16	-29 ~ 220

STANDARD MODEL ORDERING CODE
Model: CPRS Round Panel Mount Thermocouple Connector - Standard Size
Order Code	Type	ANSI Colour	Alloy		Panel Cutout Size (mm)	Temperature Range (°C)
Order Code	Type	ANSI Colour	+ VE	- VE	Panel Cutout Size (mm)	Temperature Range (°C)
CPRS002-K	K	Yellow	Chromel	Alumel	ø22.4	-29 ~ 220
CPRS002-J	J	Black	Iron	Constantan	ø22.4	-29 ~ 220
CPRS002-T	T	Blue	Copper	Constantan	ø22.4	-29 ~ 220
CPRS002-E	E	Purple	Chromel	Constantan	ø22.4	-29 ~ 220
CPRS002-N	N	Orange	Nicrosil	Nisil	ø22.4	-29 ~ 220
CPRS002-RS	R/S	Green	Copper	RNX/SNX	ø22.4	-29 ~ 220
CPRS002-U	U	White	Copper	Copper	ø22.4	-29 ~ 220

Type K, J, T, E, N, U

Material: Glass Filled Nylon

Temperature Range: -29 to 220°C

ANSI Colour Codes

Combination Philips/Slots Screw

Polarity Keyed

Standard Industrial Size

Rectangular Shape available - CPS Model
