Model: EC

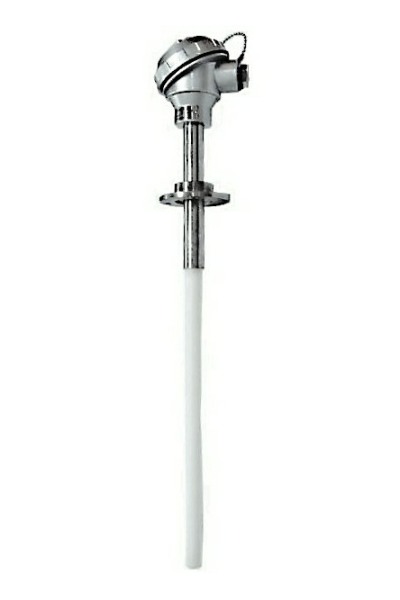

High Temperature Ceramic Thermocouple Probe with Terminal Head

STANDARD MODEL ORDERING CODE
Model: EC Description: High Temperature Ceramic Thermocouple Probes with Head Enclosure, Single, Class 1, Ungrounded
Order Code	Type	Element Size (mm)	Ceramic Diameter (mm)	Holder Length (H) (mm)	Sheath Length (C) (mm)	Ceramic Material	Temperature Range (°C)
EC-K-300CL1	K	3	15	150	200	C610	0 ~ 1200
EC-K-400CL1	K	3	15	150	250	C610	0 ~ 1200
EC-K-C7-300CL1	K	3	15	150	300	C799	0 ~ 1200
EC-K-C7-400CL1	K	3	15	150	400	C799	0 ~ 1200

Calibration Available
Click Here To View Compression Fittings
For customized designs, please refer to our Customized Order Code for more information

High Temperature Ceramic Sheath

Various Terminal Head Enclosure Design
(See Other Available Designs)

Optional:
Adjustable Flange AF2
Compression Fitting
